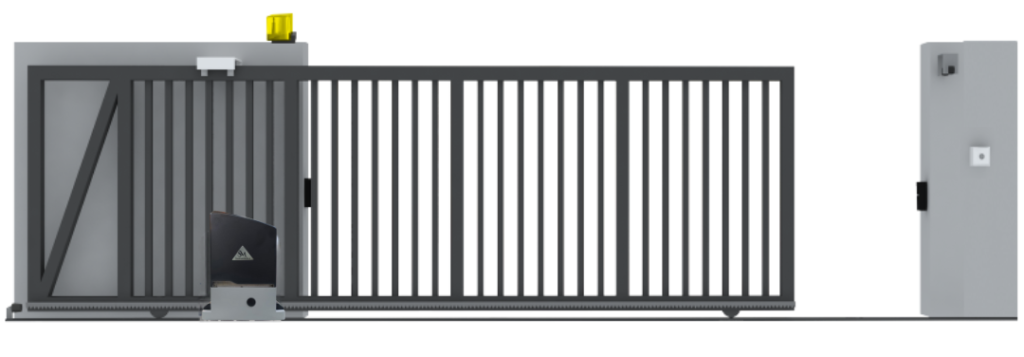

Secure your premises with advanced Sliding Gate Automation systems, designed for both residential and commercial applications. Our automated sliding gates offer a perfect blend of security, convenience, and durability, making them ideal for high-traffic areas and properties requiring robust access control.
Whether you need a heavy-duty sliding gate for industrial use or a sleek, stylish option for your home, we provide customized solutions to suit your needs. With features like remote control operation, obstacle detection, and smooth motorized movement, our sliding gates ensure reliable performance and enhanced safety.
Key Features:
High-performance motors for seamless operation
Manual override for emergencies
Weather-resistant build for long-lasting performance
Integration with access control systems, intercoms, and RFID
Low maintenance with efficient and quiet operation
Upgrade your entrance with our smart Sliding Gate Automation and experience the next level of convenience and security.
| Specification | Details |
|---|---|
| Door Type | Conventional Sliding, Telescopic & Craneway |
| Applications | Industrial, Residential, Commercial, Warehouse, Airport, Shipyards, Craneway or Any Entrance |
| Door Mounting | Bottom Mounted |
| Maximum Clear Width | 10000mm Single Leaf / 20000mm Double Leaf (Bi-Parting) |
| Maximum Height | 12000 mm (*Larger dimensions available on request) |
| Opening Direction | Horizontal Straight |
| Opening Speed | Up to 0.16 m/s (*Up to 0.3 m/s on request) |
| Closing Speed | Up to 0.16 m/s (*Up to 0.3 m/s on request) |
| Security Features | CE marked according to the European Machinery Directive 2006/42/CE Type tested according to EN 13241-1 |
| Door Frame | Square or Rectangular steel hollow tubular section |
| Cladding | 0.5mm thk PPGL / PPGI Corrugated Sheet 2mm thk MS / GI / SS304 / SS316 Sheet 40mm / 60mm / 80mm / 100mm thk Puff / Rockwool Panel with Pre-Painted Sheet on both sides |
| Sealing | Rubber Seal on side & Brush seal on bottom |
| Bottom Rail | C channel with round polished bar |
| Bottom Rollers | Italian make Galvanised Wheels min 120mm dia. with ball bearings and axle with lubrication point |
| Full Height Column | Galvanised adjustable upper guide brackets with Heavy Duty steel Box section – for crane application |
| Guide Rollers | Heavy Duty Steel adjustable upper guide brackets with Nylon Roller |
| Specification | Details |
|---|---|
| Connecting Voltage | 230V-1ph, N / 415V-3ph, N |

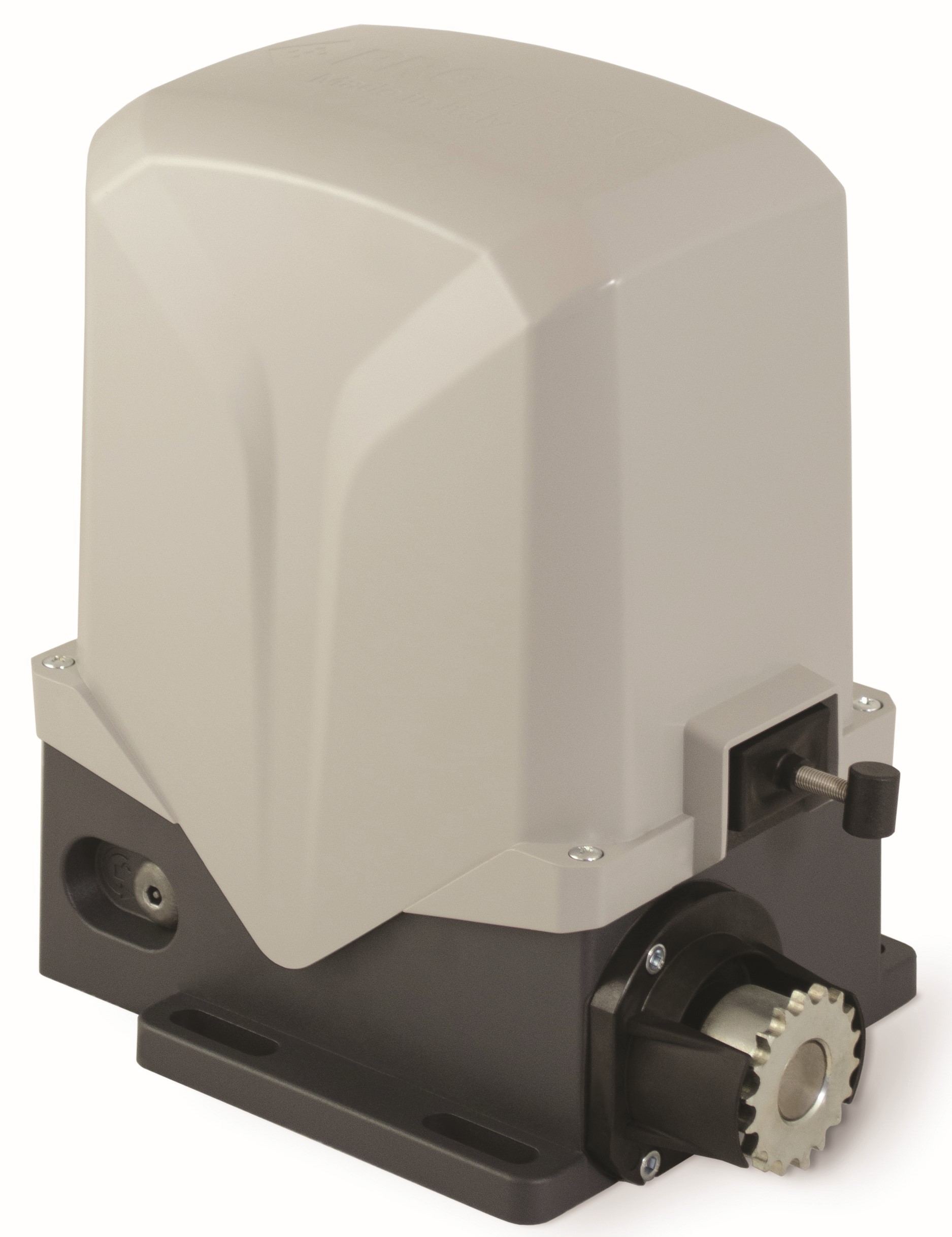

| Drive Unit | Rack driven rugged and powerful drive unit with integral electronic control unit |
| Operation | Open / Emergency Stop / Close |
| Capacity | 300Kg to 25000Kg |
| Duty Class | Intensive use |
| Protection Category | Operator : IP 44 (* Higher IP rating on request) |
| Emergency Manual Operation | Key operated |
| External Route Monitoring | Pair of Photocells with anodised aluminium vertical mountings |
| Safety Equipments | Flashing light |
